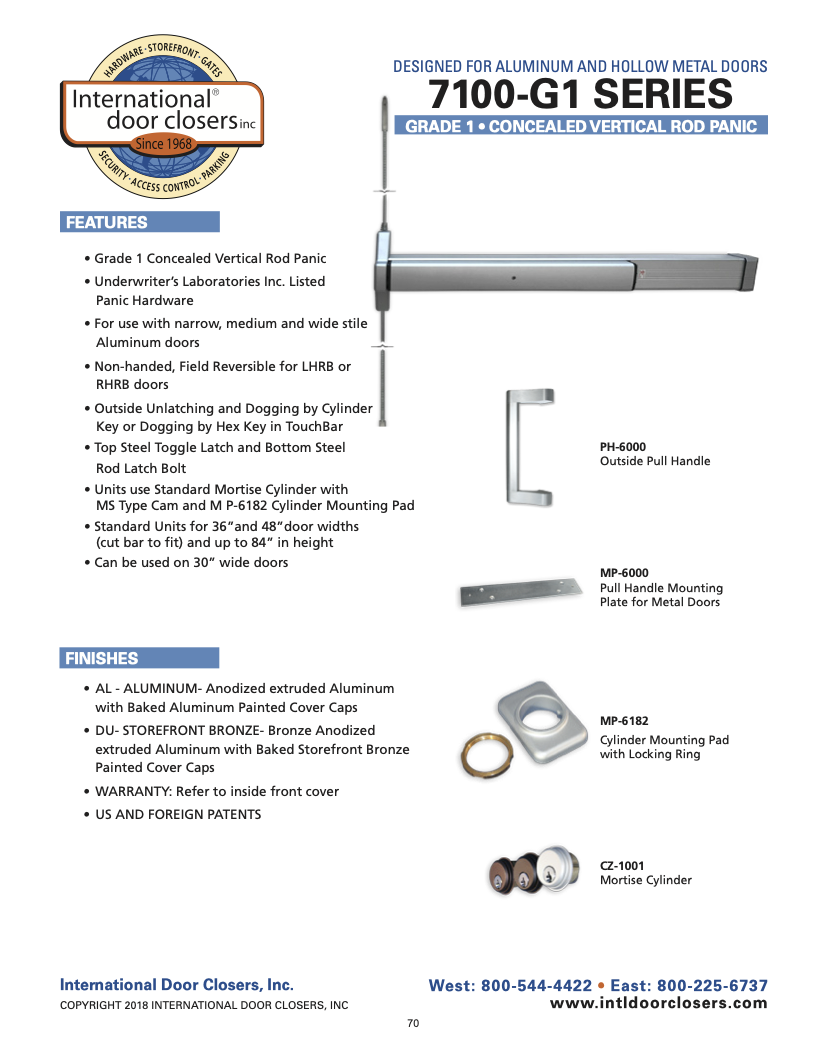

International 7100-G1 Series

FEATURES

• Grade 1 Concealed Vertical Rod Panic

• Underwriter’s Laboratories Inc. Listed Panic Hardware

• For use with narrow, medium and wide stile Aluminum doors • Non-handed, Field Reversible for LHRB or RHRB doors

• Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in TouchBar
• Top Steel Toggle Latch and Bottom Steel Rod Latch Bolt

• Units use Standard Mortise Cylinder with MS Type Cam and M P-6182 Cylinder Mounting Pad

• Standard Units for 36”and 48”door widths (cut bar to fit) and up to 84” in height

• Can be used on 30” wide doors

Parts:

PH-6000 Outside Pull Handle

MP-6000 Pull Handle Mounting Plate for Metal Doors

MP-6182 Cylinder Mounting Pad with Locking Ring

CZ-1001 Mortise Cylinder
